Freeze Dryer Trays

Capacity:	6-10 lbs fresh food per batch
Trays:	4 stainless steel trays
Dimensions:	17.4" W × 21.5" D × 26.8" H
Weight:	91 lbs
Power:	110V

Features

Tray space: 434 square inches
Freeze dry 6 to 10 lbs. fresh food per batch
Freeze dry up to 1,800 lbs. fresh food per year
(This would require a person to use the freeze dryer 4 times a week for 50 weeks a year)

Dimensions

Freeze dryer exterior dimensions: 17.4″ W x 21.5″ D x 26.8″ H
Dimensions (without door or vacuum fitting) 16.5" W x 18.5" D x 26.8" H
Perfect for counter top, cart, or table.

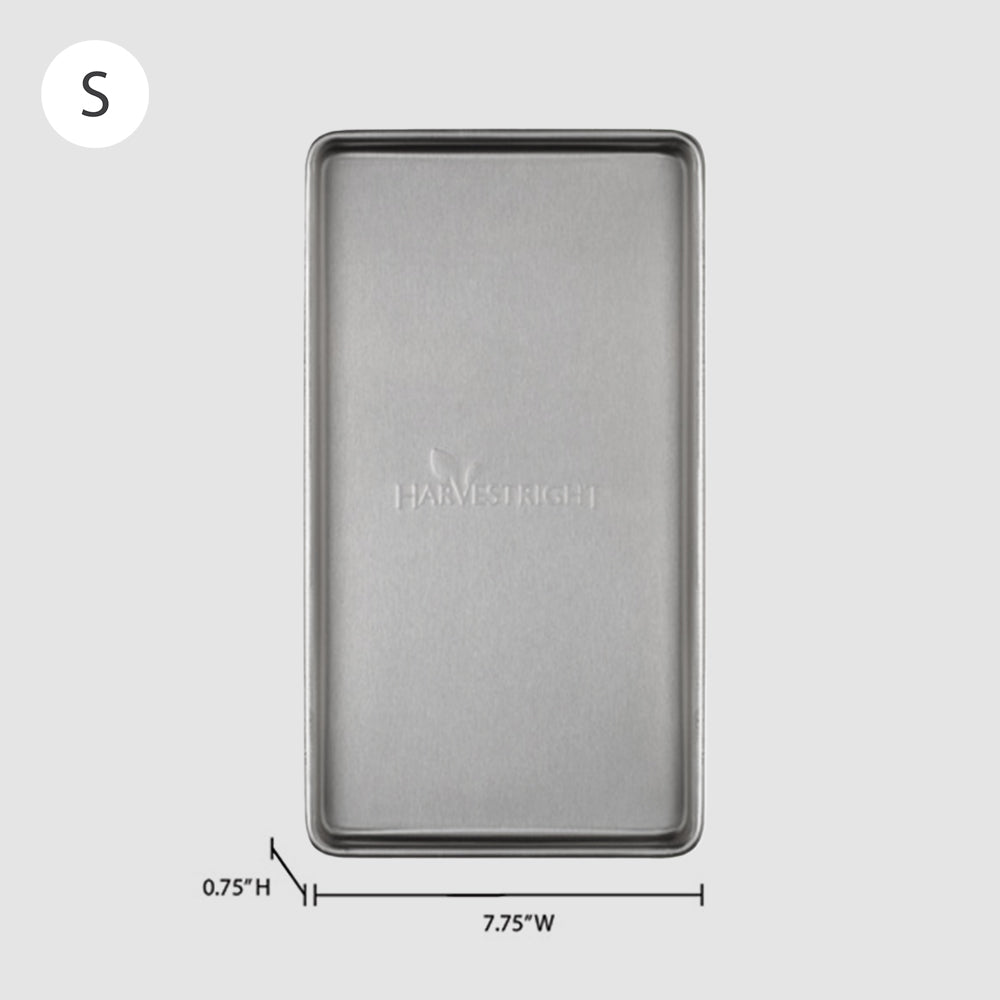

Tray dimensions: 7.75″ W x 14″ L x 0.75″ H

Weight of freeze dryer: 91 lbs.

Small Premier industrial vacuum pump included/no extra cost

Power

110 volt outlet.

Shipping Info

The small freeze dryer ships in one package with a total weight of 172 lbs. Item will only be delivered to physical addresses. One freeze dryer package: 26″ W x 36″ D x 41″ H.

Maintenance

Replace vacuum pump oil every 20 to 30 batches (takes about two minutes)
Clean freeze dryer as needed.

Warranty

Three year limited warranty.

• Small Pro Freeze Dryer
• Small Premier Industrial Vacuum Pump
• Vacuum Pump Oil
• Oil filter
• Stainless Steel Trays (set of 4)
• Guide to Freeze Drying
• Mylar Bags (50 ct)
• Oxygen Absorbers (50 ct)
• Impulse Sealer

Capacity:	10-15 lbs fresh food per batch
Trays:	5 stainless steel trays
Dimensions:	19" W × 25" D × 29" H
Weight:	119 lbs
Power:	110V

Features

Tray space: 675 square inches
Freeze dry 10 to 15 lbs. fresh food per batch
Freeze dry up to 3,000 lbs. fresh food per year
(This would require a person to use the freeze dryer 4 times a week for 50 weeks a year)

Dimensions

Freeze dryer exterior dimensions: 19″ W x 25″ D x 29″ H
Dimensions (without door or vacuum fitting) 18" W x 21.25" D x 29" H
Perfect for counter top, cart, or table.

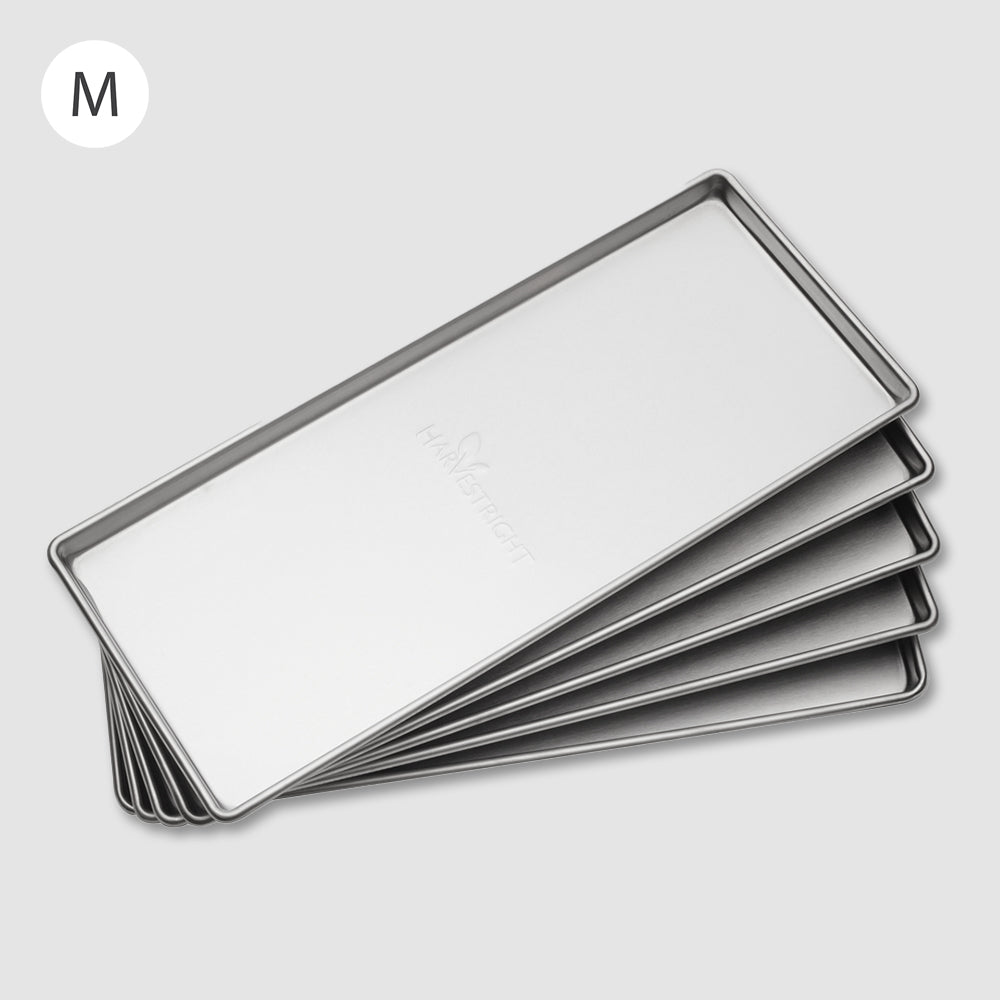

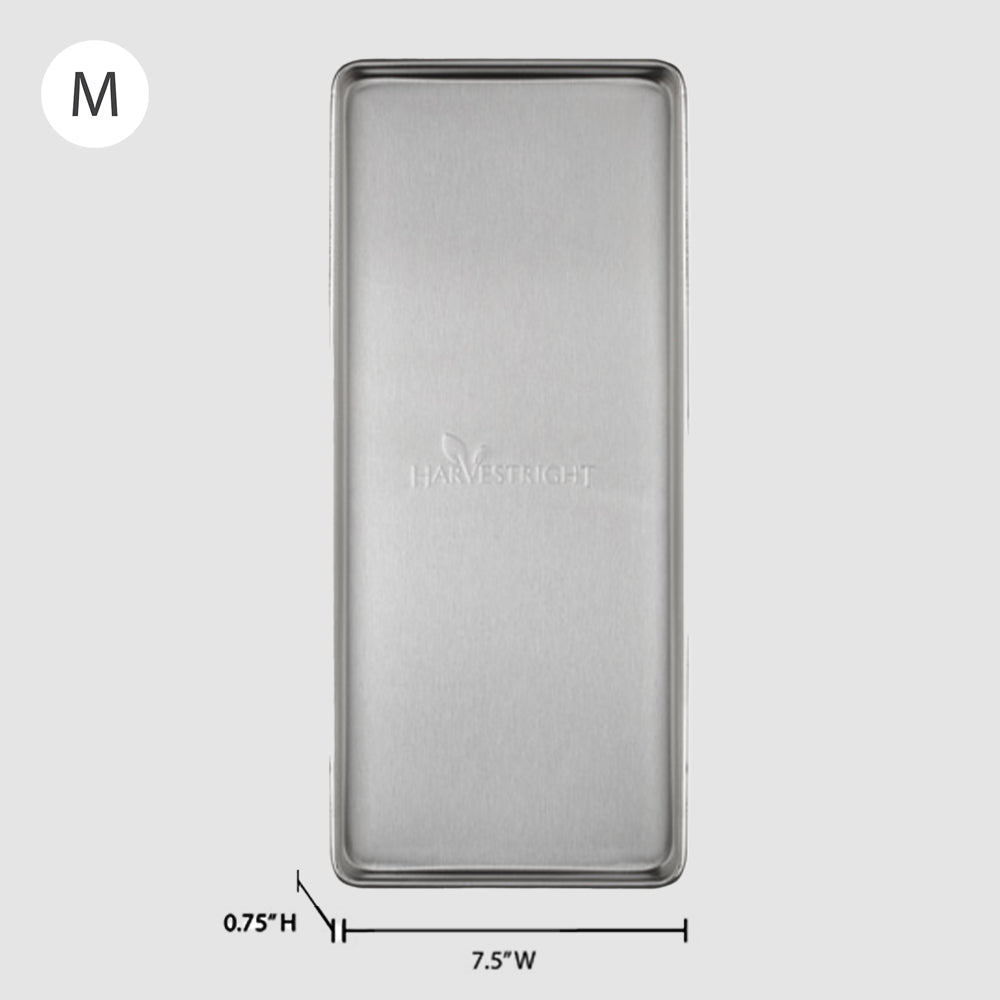

Tray dimensions: 7.5″ W x 18″ L x 0.75″ H

Weight of freeze dryer: 119 lbs.

Premier industrial vacuum pump included/no extra cost ($795 value)

Power

110 volt outlet.

Shipping Info

The medium freeze dryer ships in one package with a total weight of 209 lbs. Item will only be delivered to physical addresses. One freeze dryer package: 26″ W x 36″ D x 45″ H.

Maintenance

Replace vacuum pump oil every 20 to 30 batches (takes about two minutes)
Clean freeze dryer as needed.

Warranty

Three year limited warranty.

• Medium Pro Freeze Dryer
• Premier Industrial Vacuum Pump
• Vacuum Pump Oil
• Oil filter
• Stainless Steel Trays (set of 5)
• Guide to Freeze Drying
• Mylar Bags (50 ct)
• Oxygen Absorbers (50 ct)
• Impulse Sealer

Capacity:	18-27 lbs fresh food per batch
Trays:	6 stainless steel trays
Dimensions:	21.3" W × 27.5" D × 31.3" H
Weight:	143 lbs
Power:	110V

Features

Tray space: 1,107 square inches
Freeze dry 18 to 27 lbs. fresh food per batch
Freeze dry up to 5,000 lbs. fresh food per year
(This would require a person to use the freeze dryer 4 times a week for 50 weeks a year)

Dimensions

Freeze dryer exterior dimensions: 21.3″ W x 27.5″ D x 31.3″ H
Dimensions (without door or vacuum fitting) 20.25" W x 23.75" D x 31.3" H
Perfect for counter top, cart, or table.

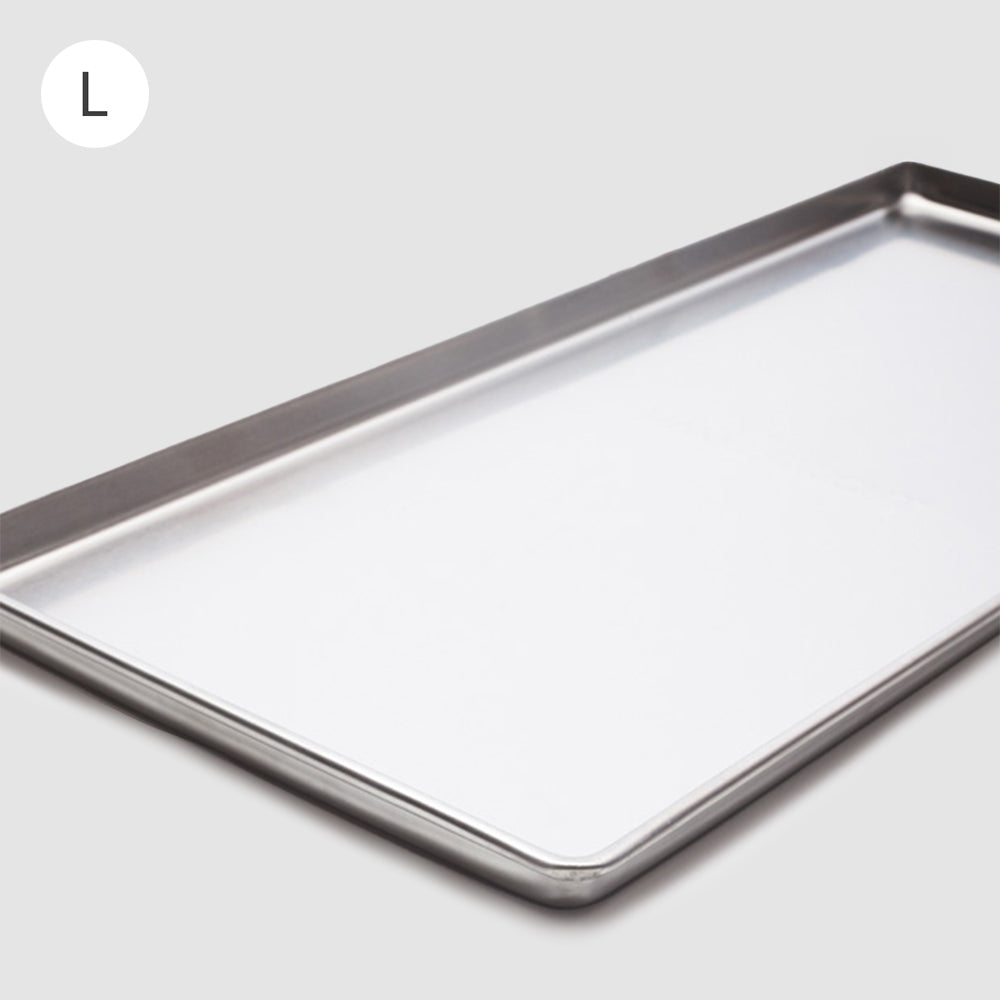

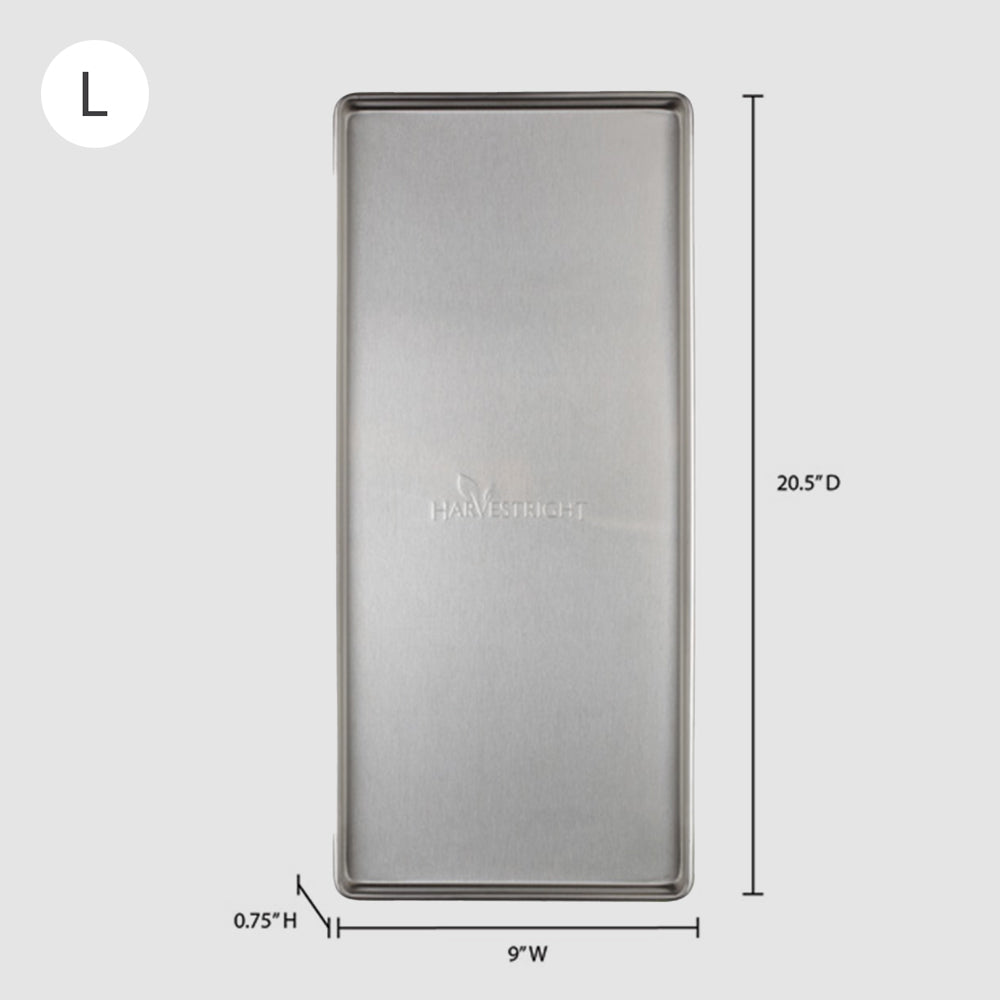

Tray dimensions: 9″ W x 20.5″ x 0.75″ H

Weight of freeze dryer: 143 lbs.

10 CFM industrial vacuum pump included/no extra cost ($895 value)

Power

110 volt (NEMA 5-15) outlet. A dedicated 15 amp circuit is required

Shipping Info

The large freeze dryer ships in one package with a total weight of 243 lbs. Item will only be delivered to physical addresses. One freeze dryer package: 29″ W x 38″ D x 48″ H.

Maintenance

Replace vacuum pump oil every 20 to 30 batches (takes about two minutes)
Clean freeze dryer as needed.

Warranty

Three year limited warranty.

• Large Pro Freeze Dryer
• XL Premier Industrial Vacuum Pump
• Vacuum Pump Oil
• Oil filter
• Stainless Steel Trays (set of 6)
• Guide to Freeze Drying
• Mylar Bags (50 ct)
• Oxygen Absorbers (50 ct)
• Impulse Sealer

Capacity:	40-50 lbs fresh food per batch
Trays:	7 stainless steel trays
Dimensions:	24.3″ W x 37.4″ D x 35.6″ H
Weight:	258 lbs
Power:	110V

Features

Tray space: 2,251 square inches
Freeze dry 40 to 50 lbs. fresh food per batch
Freeze dry up to 10,000 lbs. fresh food per year
(This would require a person to use the freeze dryer 4 times a week for 50 weeks a year)

Dimensions

Freeze dryer exterior dimensions: 24.3″ W x 37.4″ D x 35.6″ H

Dimensions (without door or vacuum fitting) 23.25" W x 33.7" D x 35.6" H
Perfect for counter top, cart, or table.

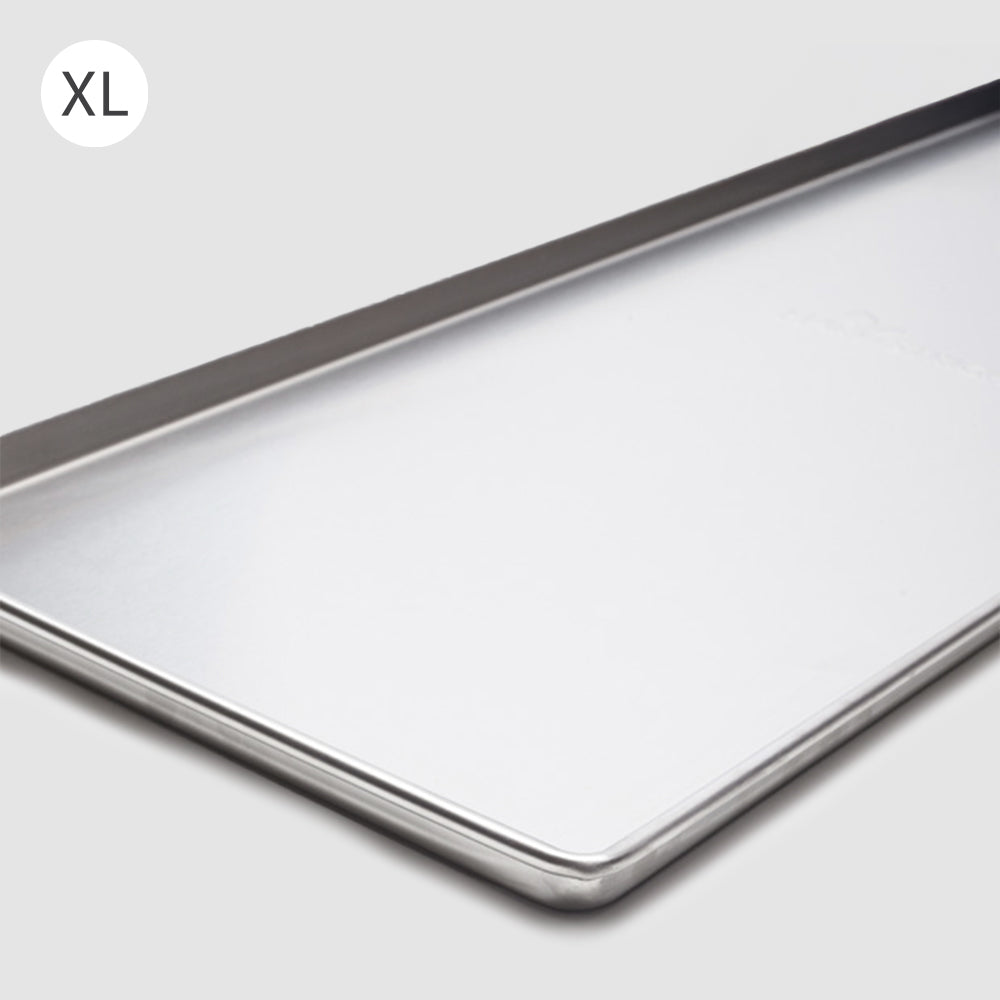

Tray dimensions: 10.9” W x 29.5” L x 0.75” H

Weight of freeze dryer: 258 lbs.

XL Premier Industrial Pump included/no extra cost

Power

110 volt (NEMA 5-20) outlet. A dedicated 20 amp circuit is required

Shipping Info

The x-large freeze dryer ships in one package with a total weight of 370 lbs. Item will only be delivered to physical addresses. One freeze dryer package: 30″ W x 48″ D x 52″ H.

Maintenance

Replace vacuum pump oil every 20 to 30 batches (takes about two minutes)
Clean freeze dryer as needed.

Warranty

Three year limited warranty.

• X-Large Pro Freeze Dryer
• XL Premier Industrial Vacuum Pump
• Vacuum Pump Oil
• Oil Filter
• Stainless Steel Trays (set of 7)
• Guide to Freeze Drying
• Mylar Bags (50 ct)
• Oxygen Absorbers (50 ct)
• Impulse Sealer

Small Pharmaceutical Freeze Dryer

Capacity:	0.90 GAL (3.4 L)
Trays:	5 stainless steel trays
Dimensions:	17.4″ W x 21.5″ D x 26.8″ H
Weight:	98 Lbs
Power:	110 volt

Key Features & Benefits

• The freeze dryer has built in intelligence. It automatically and perfectly manages the freeze drying process
• The ideal vacuum pressure and drying temperature is maintained for each material – preserves freshness and potency
• 3.75 square feet of tray space
• Shelving unit holds 5 trays (each tray 7.75″ W x 14″ L x 0.75″ H)
• 3 liters of ice capacity
• Weight: 98 lbs.

Warranty

3 year limited warranty

Dimensions

Freeze dryer exterior dimensions: 17.4″ W x 21.5″ D x 26.8″ H

Dimensions (without door or vacuum fitting): 16.5" W x 18.5" D x 26.8" H

Perfect for a counter top, cart or table.

Power

110 volt outlet.

Shipping Info

• The small freeze dryer ships in one package with a total weight of 179 lbs.
• Item will be delivered to physical addresses, no PO boxes.
• One freeze dryer package: 26″W x 36″D x 41″H.

Maintenance

Simply filter and replace oil. Takes one or two minutes.

Industrial Grade Pump

High quality, super high vacuum

High evacuation performance

Light, fast, energy efficient

Technical Specifications

Oil: Harvest Right Oil, Robinair Premium High Vacuum Pump Oil or JB Industries Black Gold Vacuum Pump Oil Only
DC Motor
Energy Efficient
Voltage: Standard, 115v, 60Hz
Dimensions: 16.3″ x 6″ x 12.1″
Weight: 32lbs
Noise: 52 decibels

• Small Pharmaceutical Freeze Dryer
• Premier Vacuum Pump
• Vacuum Pump Oil
• Oil filter
• Stainless Steel Trays (set of 5)
• Guide to Freeze Drying

Medium Pharmaceutical Freeze Dryer

Capacity:	1.5 GAL (5.7 L)
Trays:	6 stainless steel trays
Dimensions:	19″ W x 25″ D x 29″ H
Weight:	127 lbs
Power:	110 volt

Key Features & Benefits

• The freeze dryer has built in intelligence. It automatically and perfectly manages the freeze drying process
• The ideal vacuum pressure and drying temperature is maintained for each material – preserves freshness and potency
• 6.5 square feet of tray space
• Shelving unit holds 7 trays (each tray 7.5″ W x 18″ L x 0.75″ H)
• 4 liters of ice capacity
• Weight: 127 lbs.

Warranty

3 year limited warranty

Dimensions

Freeze dryer exterior dimensions: 19″ W x 25″ D x 29″ H

Dimensions (without door or vacuum fitting): 18" W x 21.25" D x 29" H

Perfect for a counter top, cart or table.

Power

110 volt outlet.

Shipping Info

• The small freeze dryer ships in one package with a total weight of 216 lbs.
• Item will be delivered to physical addresses, no PO boxes.
• One freeze dryer package: 26″W x 36″D x 45″H.

Maintenance

Simply filter and replace oil. Takes one or two minutes.

Industrial Grade Pump

High quality, super high vacuum

High evacuation performance

Light, fast, energy efficient

Technical Specifications

Oil: Harvest Right Oil, Robinair Premium High Vacuum Pump Oil or JB Industries Black Gold Vacuum Pump Oil Only
DC Motor
Energy Efficient
Voltage: Standard, 115v, 60Hz
Dimensions: 16.3″ x 6″ x 12.1″
Weight: 32lbs
Noise: 52 decibels

• Medium Pharmaceutical Freeze Dryer
• Premier Vacuum Pump
• Vacuum Pump Oil
• Oil filter
• Stainless Steel Trays (set of 7)
• Guide to Freeze Drying

Large Pharmaceutical Freeze Dryer

Capacity:	2.7 GAL (10.2 L)
Trays:	8 stainless steel trays
Dimensions:	21.3″ W x 27.5″ D x 31.3″ H
Weight:	150 lbs
Power:	110 volt

Key Features & Benefits

• The freeze dryer has built in intelligence. It automatically and perfectly manages the freeze drying process
• The ideal vacuum pressure and drying temperature is maintained for each material – preserves freshness and potency
• 10.25 square feet of tray space—nearly twice the capacity of Harvest Right’s standard Large freeze dryer
• Shelf Unit Has shelves for 8 trays (each tray 9″ W x 20.5″ x 0.75″ H)
• 6 liters of ice capacity
• Weight: 150 lbs.

Warranty

3 year limited warranty

Dimensions

Freeze dryer exterior dimensions: 21.3″ W x 27.5″ D x 31.3″ H

Dimensions (without door or vacuum fitting): 20.25" W x 23.75" D x 31.3" H

Perfect for a counter top, cart or table.

Power

110 volt (NEMA 5-20) outlet. A dedicated 20 amp circuit is required.

Shipping Info

• The small freeze dryer ships in one package with a total weight of 253 lbs.
• Item will be delivered to physical addresses, no PO boxes.
• One freeze dryer package: 29″W x 38″D x 48″H.

Maintenance

Simply filter and replace oil. Takes one or two minutes.

Vacuum Pump

Each vacuum pump has been factory tested to guarantee 25 microns (25,400 Microns = 1 Inch of Hg) or better, and listed CFM performance.

High evacuation performance

Light, fast, energy efficient

Vacuum Pump Technical Specifications

Oil: Harvest Right Oil, Robinair Premium High Vacuum Pump Oil or JB Industries Black Gold Vacuum Pump Oil Only
DC Motor
Energy Efficient
Voltage: Standard, 115v, 60Hz
Dimensions: 16.3″ x 6″ x 12.1″
Weight: 32lbs
Noise: 52 decibels

• Large Pharmaceutical Freeze Dryer
• Premier Vacuum Pump
• Vacuum Pump Oil
• Oil filter
• Stainless Steel Trays (set of 8)
• Guide to Freeze Drying

Medium Scientific Freeze Dryer

Holding Capacity:	1.5 GAL (5.7 L)
Trays:	5 stainless steel trays
Dimensions:	19″ W x 25″ D x 29″ H
Weight:	127 lbs
Power:	110V

Key Features & Benefits

• Convenience of 5-tray dryer in a table top unit.
• Full-color, touch-screen display.
• 2 gallons ice condensing capacity.
• Operation allows for recipe customization (up to 10 Thermal Treatment and 12 Drying steps).
• Control of the rate of freeze. This means that the rate of freeze can be speeded up or slowed down.
• Control of the ultimate final freeze temperature.
• Control of the amount of time a material is held at the ultimate freeze temperature before the drying cycle is started.
• Control of the shelf temperature during the dry cycle. This includes setting as many as five different shelf temperatures, thus allowing the material to dry in phases, at different temperatures. For instance, you might have the material begin drying at 10ºF and increase the temperature in phases until the ultimate final dry temperature is 70ºF.
• The shelf heaters can be set to automatically control the rate of sublimation during the primary drying cycle. Through this process, the unit has control of the attendant vacuum pressure.
• The system records and maintains a log of the pressure and temperature during all parts of the freeze-dry cycle.
• Provides ongoing, real-time display of pressure and temperature.

Technical Specifications

Item: Freeze Dryer/Lyophilizer
Style: Bench/Table Top
Holding Capacity: 2 Gallons of Sublimated Ice
Min. Temp. Rating: Collector Cools to -46ºF
Collector Material: Stainless Steel
Drying Chamber: Included (Stainless Steel)
Purge Valve: Included
Voltage: 115 VAC
AMPS: 15 A
Freeze dryer exterior dimensions: 19″ W x 25″ D x 29″ H
Dimensions (without door or vacuum fitting) 18" W x 21.25" D x 29" H
Exterior: Stainless Steel or Powder Coated Aluminum
Electronics: Includes a Full Color Touch Screen (4.3″ diagonal)
Operation: Manual / Automated
Vacuum Pump: Premier Industrial Vacuum Pump

Shelf Unit Has shelves for 5 trays

• Medium Scientific Pro Freeze Dryer
• Premier Industrial Vacuum Pump
• Vacuum Pump Oil
• Oil Filter
• Stainless Steel Trays (set of 5)

Large Scientific Freeze Dryer

Holding Capacity:	2.7 GAL (10.2 L)
Trays:	6 stainless steel trays
Dimensions:	21.3″ W x 31.3″ D x 27.5″ H
Weight:	150 lbs
Power:	110V

Key Features & Benefits

• Convenience of 6-tray dryer in a table top unit.
• Full-color, touch-screen display.
• 2 gallons ice condensing capacity.
• Operation allows for recipe customization (up to 10 Thermal Treatment and 12 Drying steps).
• Control of the rate of freeze. This means that the rate of freeze can be speeded up or slowed down.
• Control of the ultimate final freeze temperature.
• Control of the amount of time a material is held at the ultimate freeze temperature before the drying cycle is started.
• Control of the shelf temperature during the dry cycle. This includes setting as many as five different shelf temperatures, thus allowing the material to dry in phases, at different temperatures. For instance, you might have the material begin drying at 10ºF and increase the temperature in phases until the ultimate final dry temperature is 70ºF.
• The shelf heaters can be set to automatically control the rate of sublimation during the primary drying cycle. Through this process, the unit has control of the attendant vacuum pressure.
• The system records and maintains a log of the pressure and temperature during all parts of the freeze-dry cycle.
• Provides ongoing, real-time display of pressure and temperature.

Technical Specifications

Item: Freeze Dryer/Lyophilizer
Style: Bench/Table Top
Holding Capacity: 2 Gallons of Sublimated Ice
Min. Temp. Rating: Collector Cools to -46ºF
Collector Material: Stainless Steel
Drying Chamber: Included (Stainless Steel)
Purge Valve: Included
Voltage: 115 VAC
AMPS: 15 A
Freeze dryer exterior dimensions: 19″ W x 25″ D x 29″ H
Dimensions (without door or vacuum fitting) 18" W x 21.25" D x 29" H
Exterior: Stainless Steel or Powder Coated Aluminum
Electronics: Includes a Full Color Touch Screen (4.3″ diagonal)
Operation: Manual / Automated
Vacuum Pump: Premier Industrial Vacuum Pump

Shelf Unit Has shelves for 6 trays

• Large Scientific Pro Freeze Dryer
• Premier Industrial Vacuum Pump
• Vacuum Pump Oil
• Oil Filter
• Stainless Steel Trays (set of 6)

X-Large Scientific Freeze Dryer

Holding Capacity:	6.6 gallons (25 L)
Trays:	7 stainless steel trays
Dimensions:	24.3″ W x 35.6″ D x 37.4″ H
Weight:	265 lbs
Power:	110V

Key Features & Benefits

• Convenience of 6-tray dryer in a table top unit.
• Full-color, touch-screen display.
• 2 gallons ice condensing capacity.
• Operation allows for recipe customization (up to 10 Thermal Treatment and 12 Drying steps).
• Control of the rate of freeze. This means that the rate of freeze can be speeded up or slowed down.
• Control of the ultimate final freeze temperature.
• Control of the amount of time a material is held at the ultimate freeze temperature before the drying cycle is started.
• Control of the shelf temperature during the dry cycle. This includes setting as many as five different shelf temperatures, thus allowing the material to dry in phases, at different temperatures. For instance, you might have the material begin drying at 10ºF and increase the temperature in phases until the ultimate final dry temperature is 70ºF.
• The shelf heaters can be set to automatically control the rate of sublimation during the primary drying cycle. Through this process, the unit has control of the attendant vacuum pressure.
• The system records and maintains a log of the pressure and temperature during all parts of the freeze-dry cycle.
• Provides ongoing, real-time display of pressure and temperature.

Technical Specifications

Item: Freeze Dryer/Lyophilizer
Style: Bench/Table Top
Holding Capacity: 2 Gallons of Sublimated Ice
Min. Temp. Rating: Collector Cools to -46ºF
Collector Material: Stainless Steel
Drying Chamber: Included (Stainless Steel)
Purge Valve: Included
Voltage: 110 VAC
AMPS: 15 A
Freeze dryer exterior dimensions: 24.3″ W x 35.6″ D x 37.4″ H
Dimensions (without door or vacuum fitting) 23.25" W x 31.85" D x 37.4" H
Exterior: Stainless Steel or Powder Coated Aluminum
Electronics: Includes a Full Color Touch Screen (4.3″ diagonal)
Operation: Manual / Automated
Vacuum Pump: Premier Industrial Vacuum Pump

Shelf Unit Has shelves for 7 trays

• X-Large Scientific Pro Freeze Dryer
• Premier Industrial Vacuum Pump
• Vacuum Pump Oil
• Oil Filter
• Stainless Steel Trays (set of 7)
